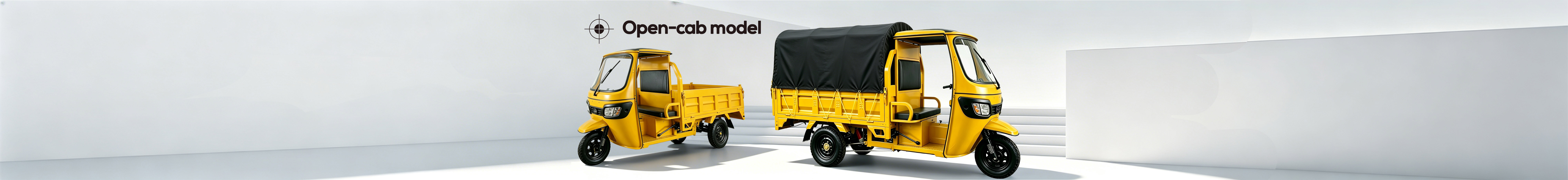

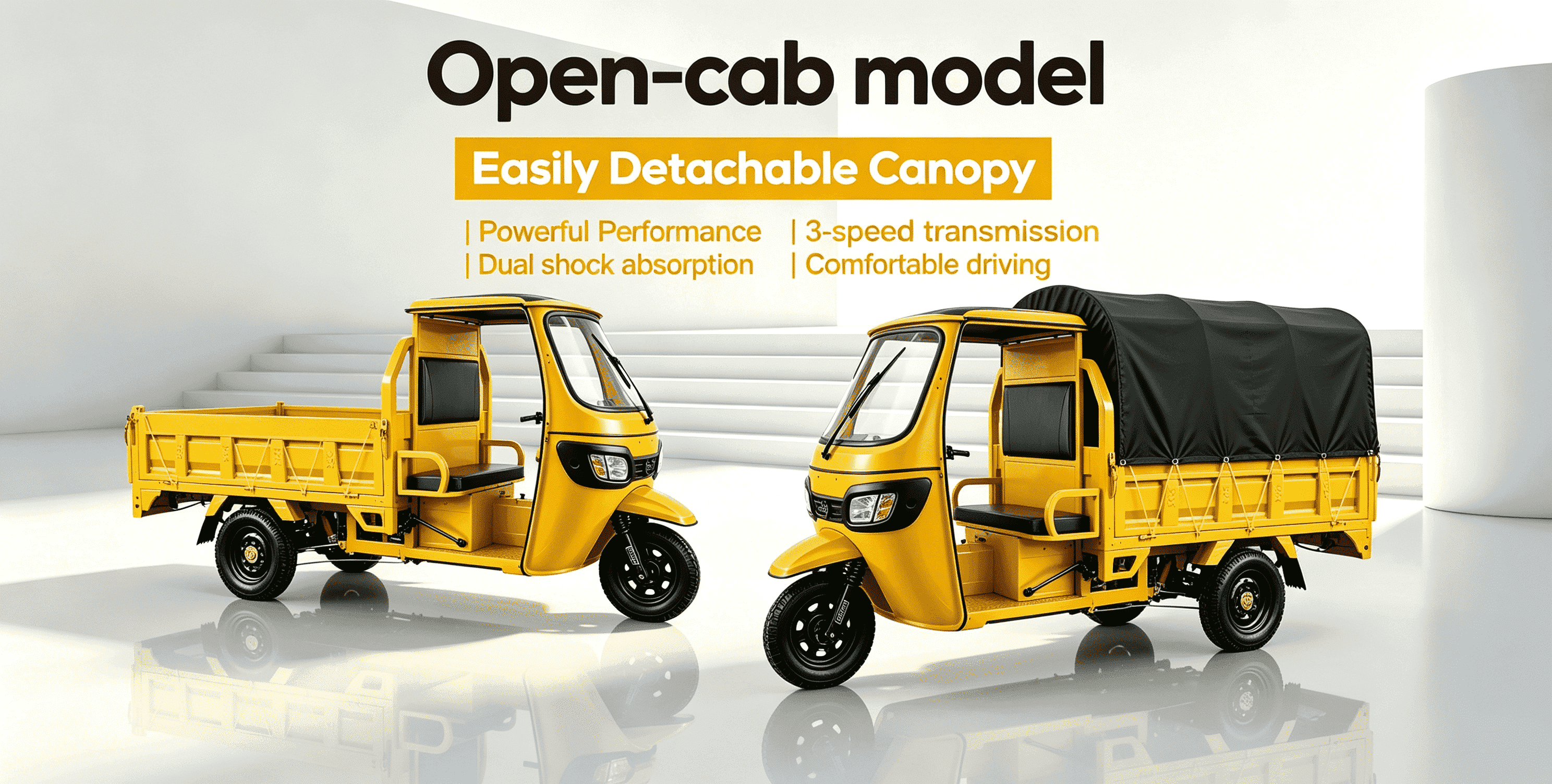

TKT1800DZH-2-01

Features and Advantages

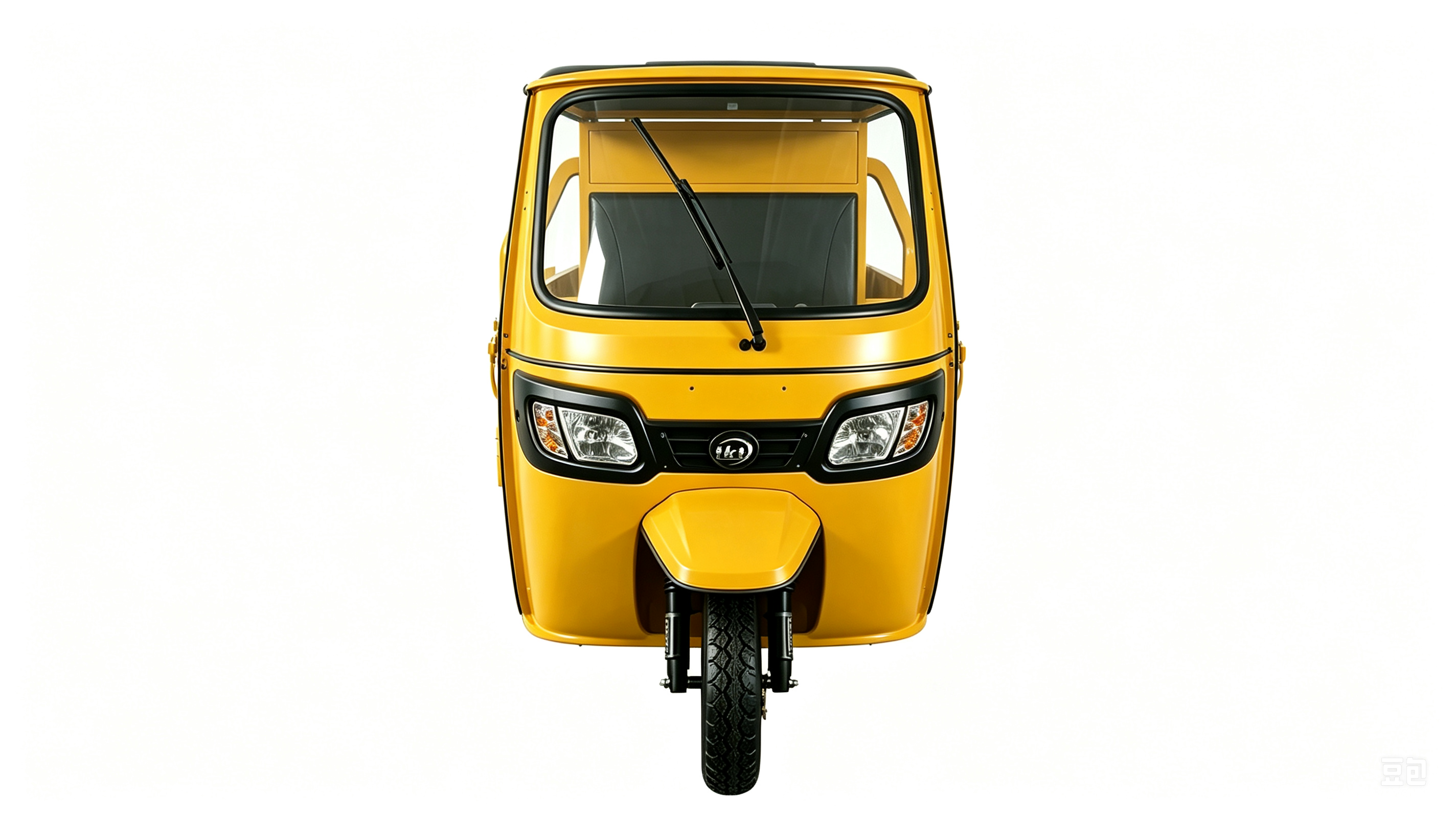

Exterior

Interior

Performance Parameters

Smart Features

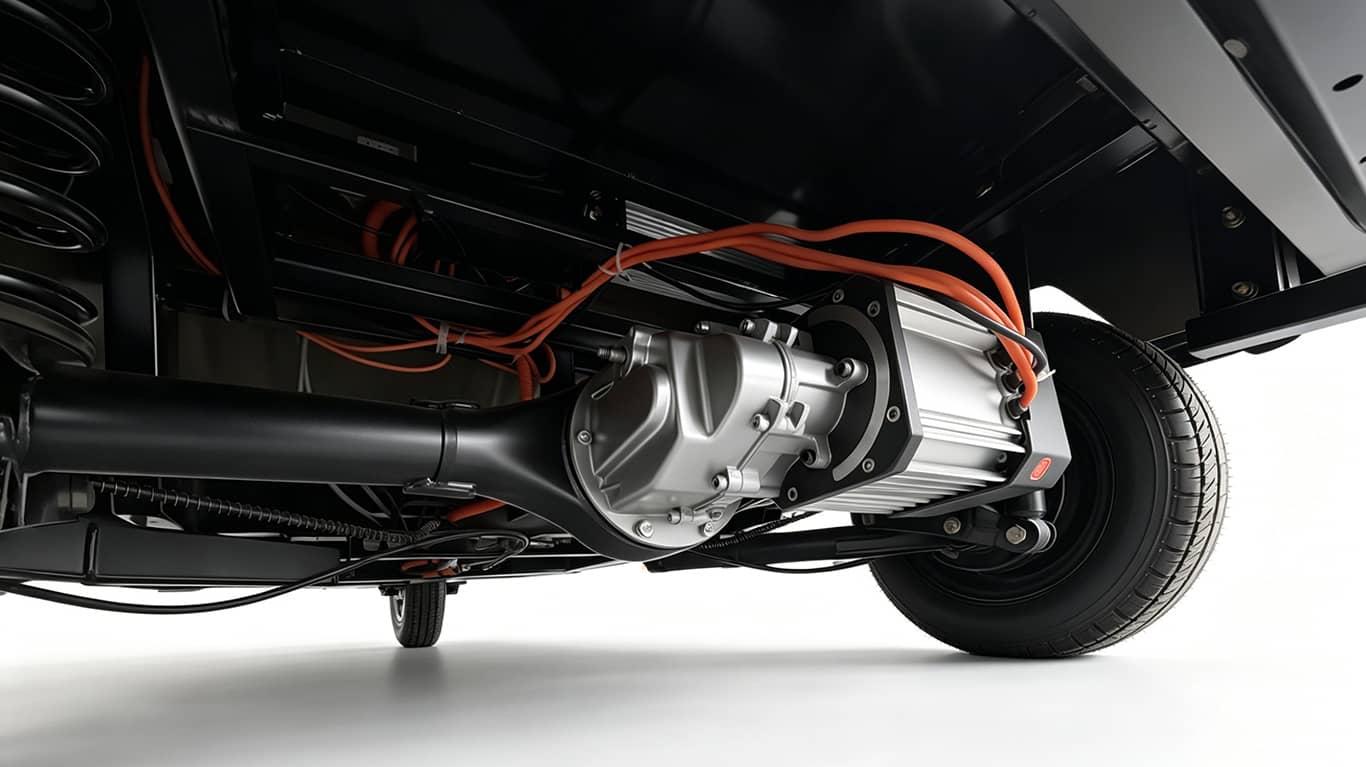

Body Structure

Long service life, rugged thick steel frame, anti-deformation structure & premium anti-rust coating.

Harvests solar energy to save electricity costs and protect the vehicle battery.

High-strength anti-collision structure, effectively protects vehicle front from impact damage.

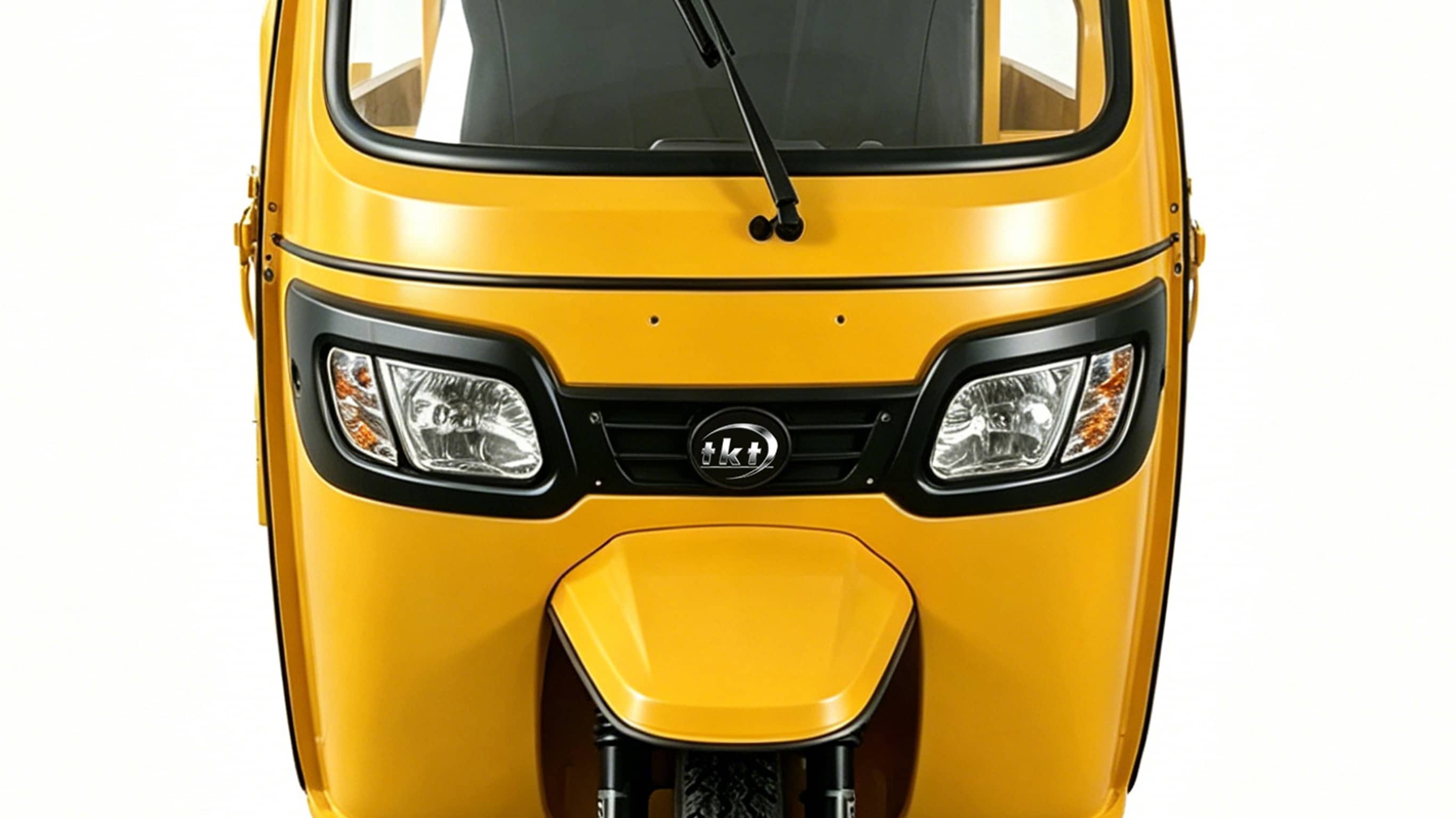

High-brightness LED headlights provide a clear field of view and long service life, significantly enhancing visibility at night.

Guards front components, beautifies the outlook and eases maintenance.

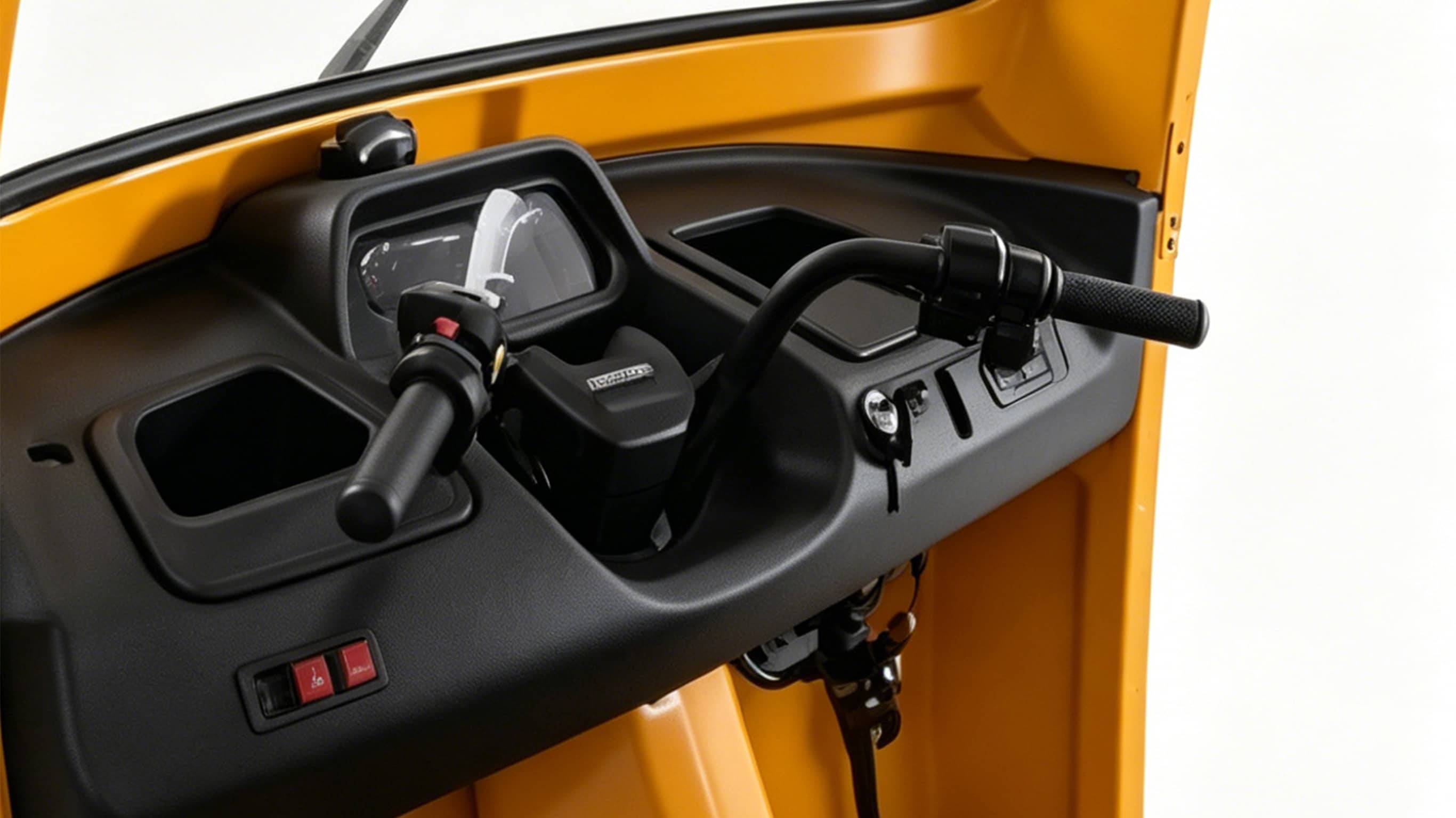

Flexible & easy steering, fatigue-reduced control.

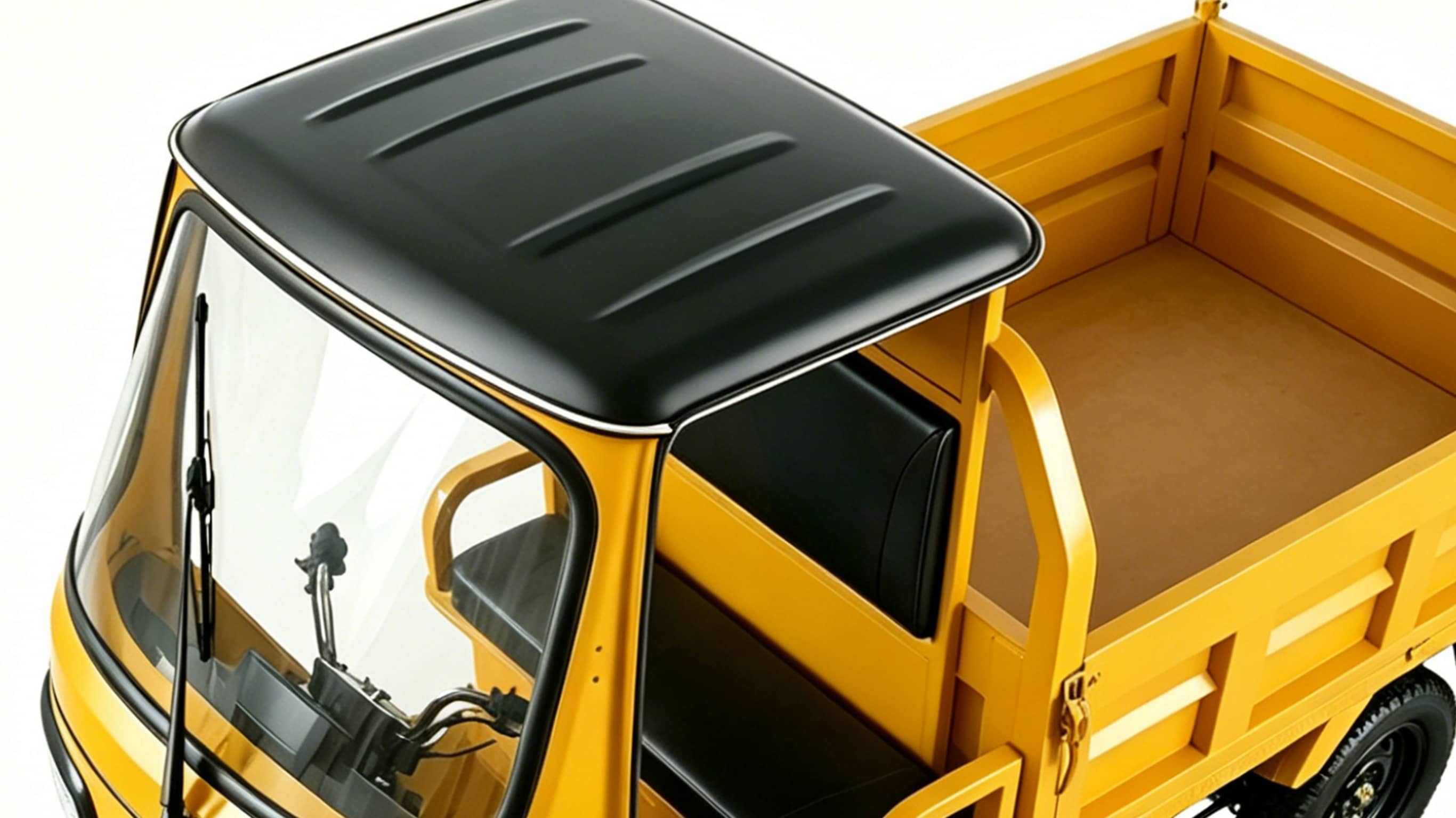

Shields drivers from harsh weather for safer and more comfortable driving.

Strong power to climb 30° steep slopes smoothly.

High-definition connected rear view camera eliminates blind spots for safer reversing and parking.

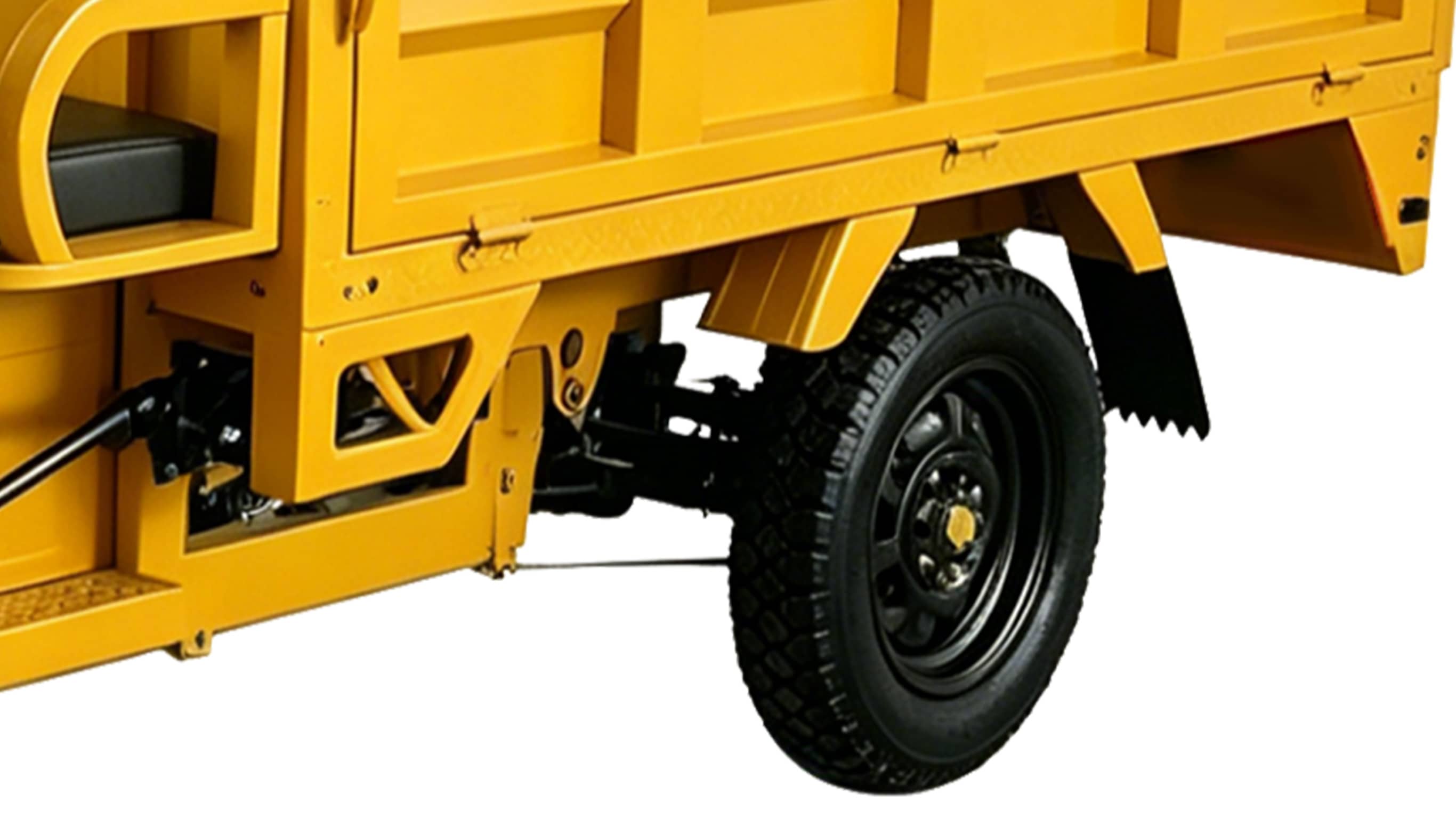

It bears heavier loads (22% higher capacity than semi-floatingaxles), great for heavy haulage, full-load work and frequentclimbing

Driving range	(90-110km)/(110-130)/(130-150km) optional
Climbing ability	20.00%
Driving mode	Forward/Reverse/Neutral
Top speed	≤50km/h
Drive mode	Three-speed AMT + mechanical high/low gears
Front shock absorbers	Φ43 external spring hydraulic shock absorbers

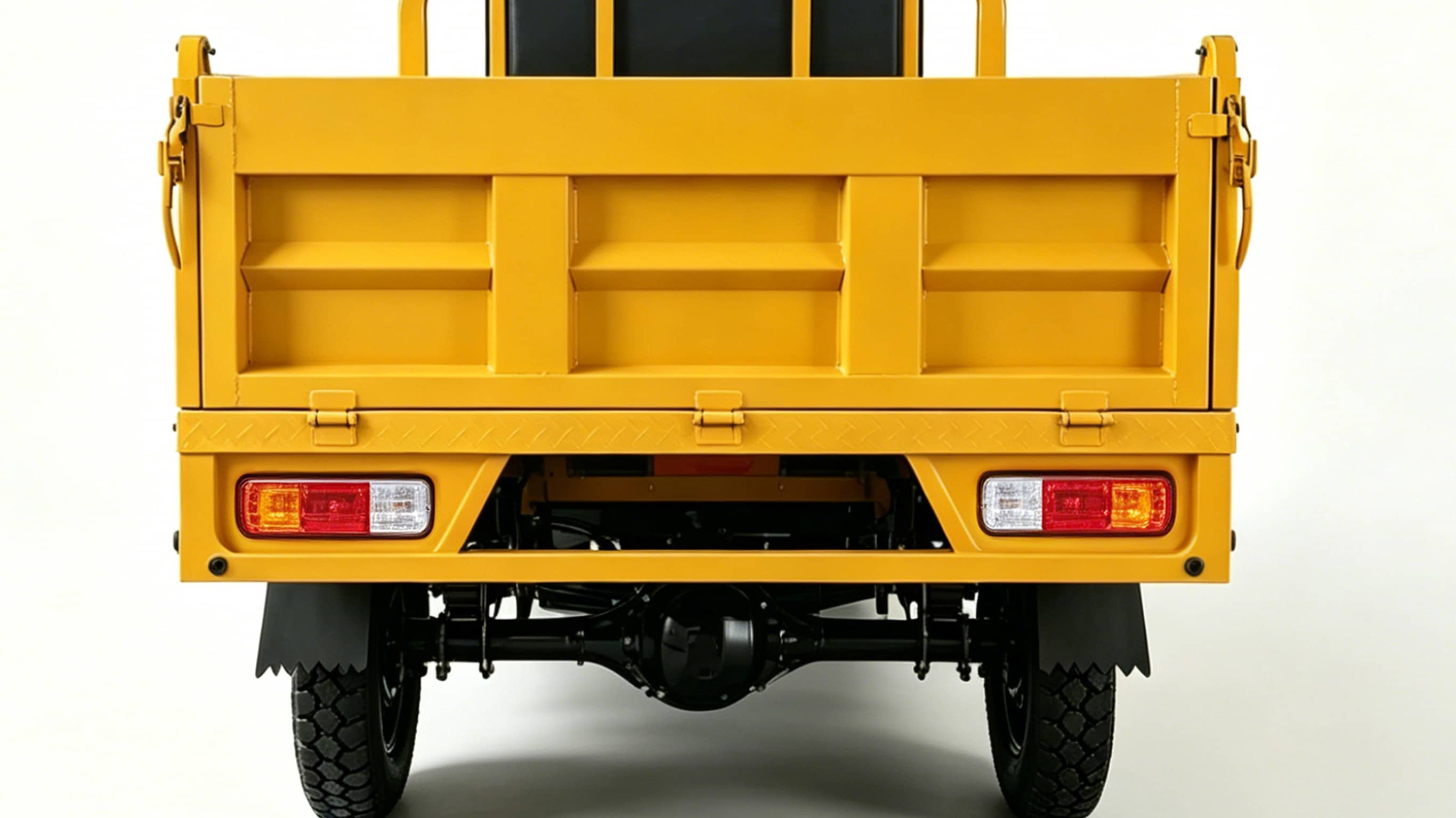

Rear axle	Fully suspended rear axle
Rear suspension system	Leaf springs
Tire type	4.00-12 steel wire tires (front/rear)
Curb weight	360kg
Maximum load capacity	800kg

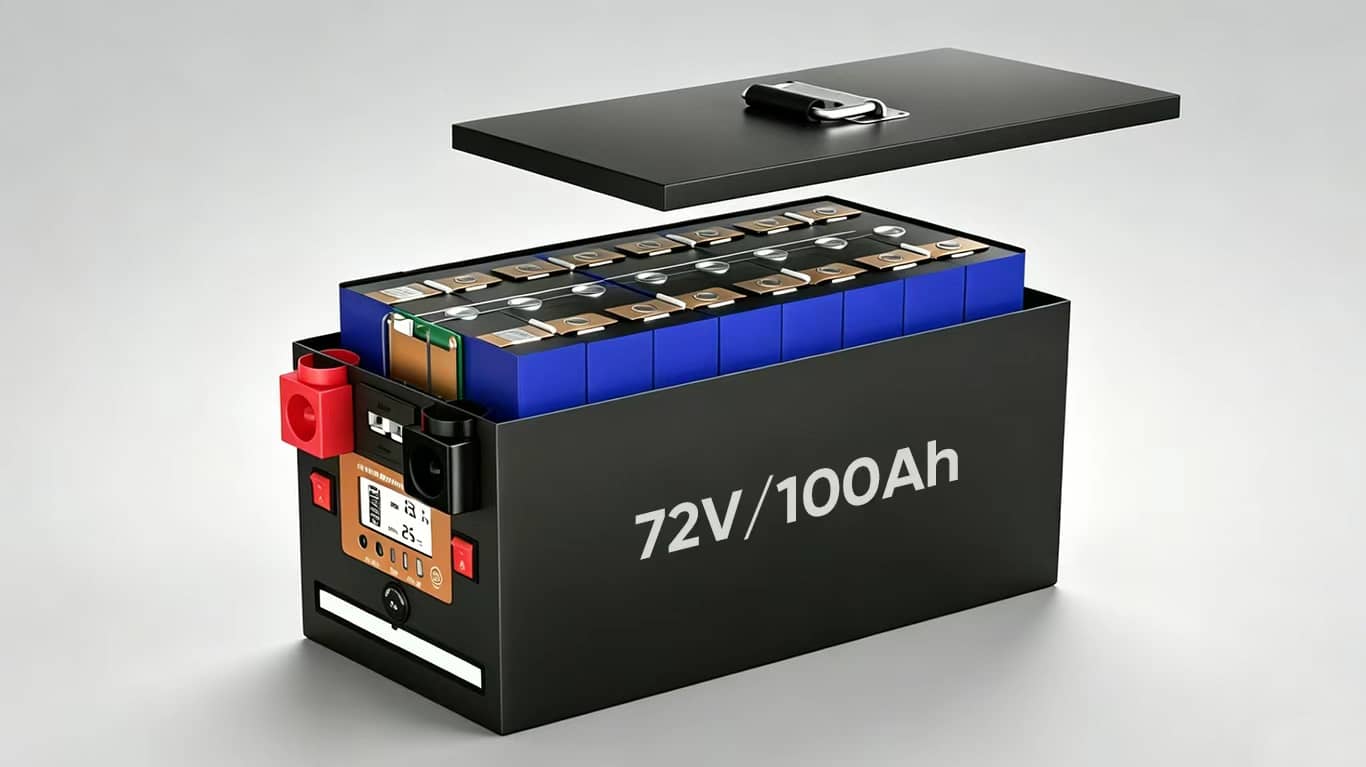

Battery type	Lithium iron phosphate battery
Battery capacity	72V/100Ah 120Ah 150Ah (reference)
Charger	72V 10A 15A
Charging time	Calculated by charger
Waterproof rating	IP67

Motor Type	DC motor
Peak Power (Rated Power)	6KW (60/72V 1800W)
Drive Type	Gear drive
Brakes (Front/Rear)	Hydraulic drum brake, 180mm drum brake

Lighting	High-brightness LED headlights (high and low beams)
Seats	Premium upholstered interior

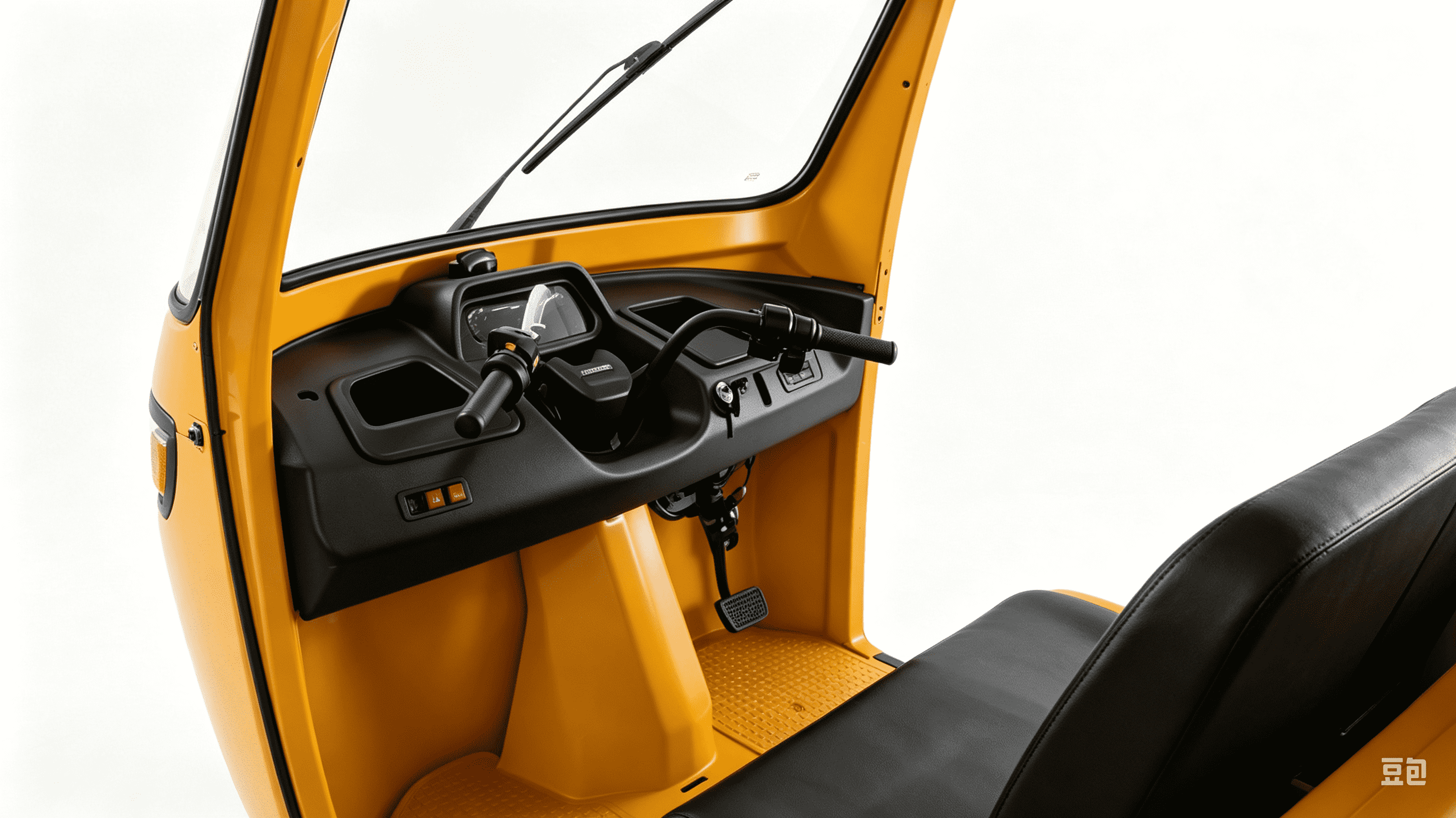

Dashboard	Digital instrument cluster
Glove Box	Dual large-capacity glove boxes on the left and right sides of the dashboard

Full vehicle paint

Electroplated, baked enamel
